Drive Electronics (DE02, DE03)

  • USB Interface
  • Burst / Continuous Drops or Single Drop On Demand
  • Arbitrary Waveform Capability
  • High Power: +/- 84 Volts Drive
  • Drives up to 8 Print Heads Simultaneously
  • Digital Trigger Input and Output For High Speed Synchronization
  • Strobe Light Output Drive and High Speed LED Light. Allows Viewing of Droplet Formation

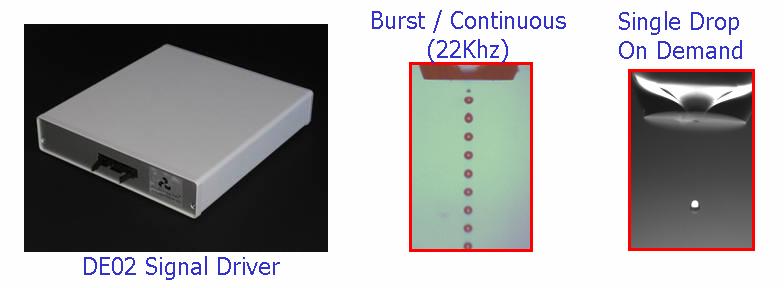

USB Signal Driver

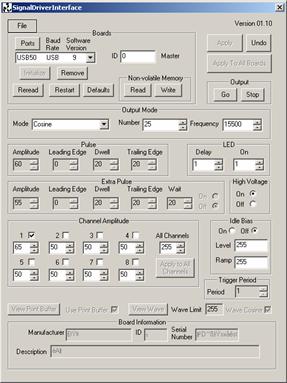

PC Windows Drivers and Standalone Windows Application

USB Signal Driver

Droplet Imaging System

  • Camera and Optics to Inspect Droplet Formation
  • USB Interface for PC image capture
  • 5X Lens Magnification (standard)
  • High Speed 1usec Strobe Light
  • Mount and cable for connection to DE03
